Features

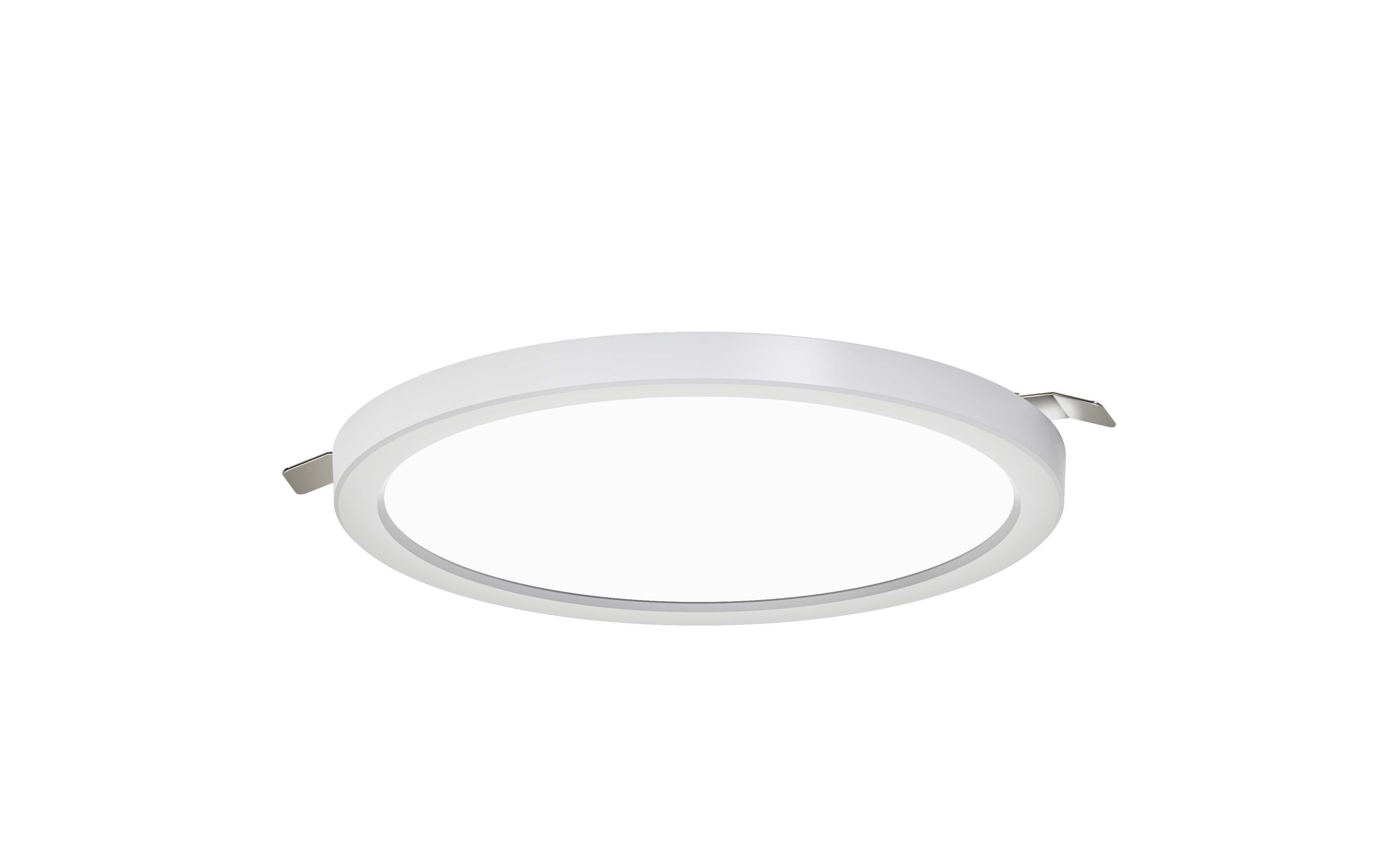

1. Ultra slim. Ring thickness is 15mm,luminaire height is 43mm.
2. Recessed Installation. Cutting-out sizes for 220mm is Ф140-Ф190mm,for 280mm is Ф160-Ф230mm.

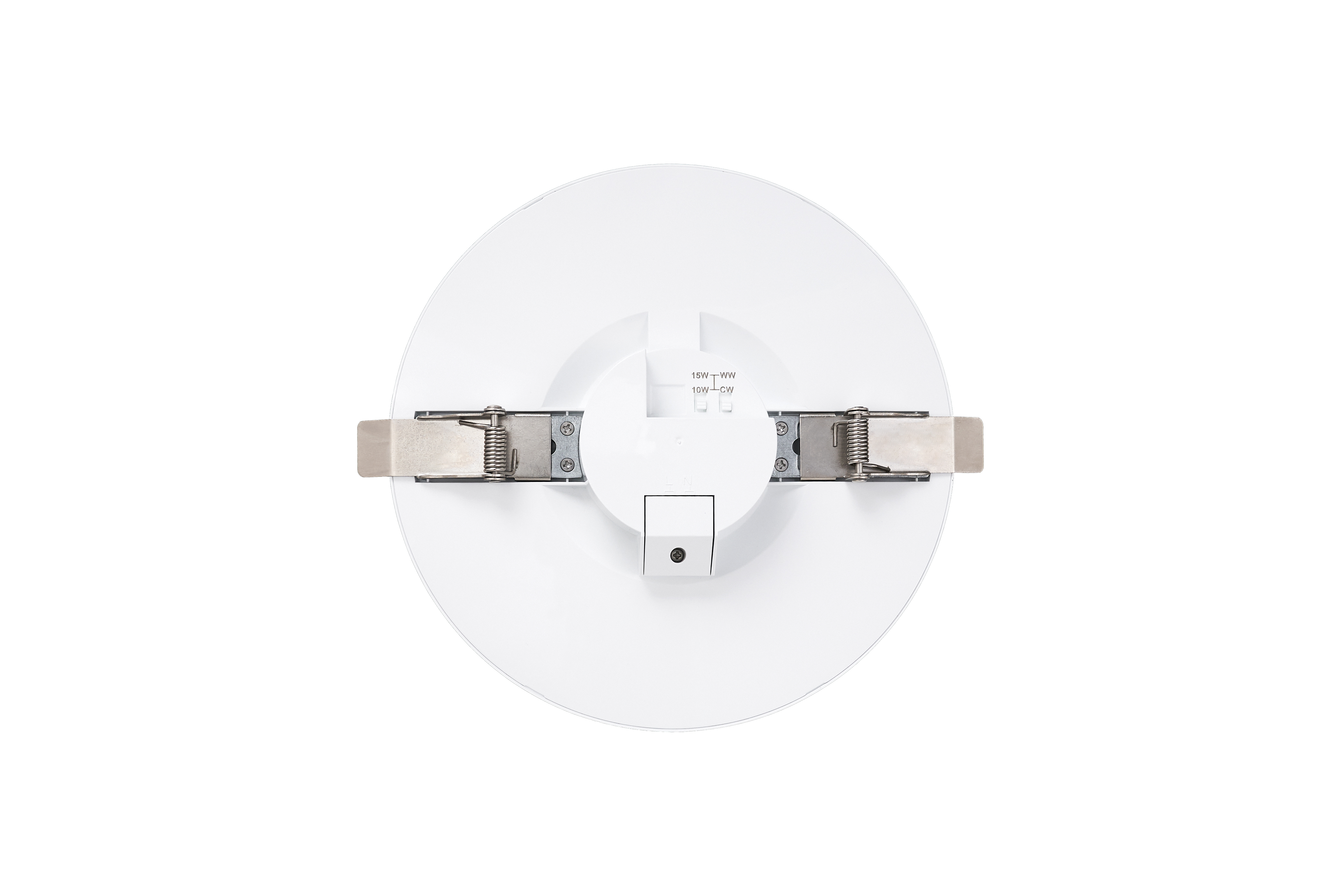

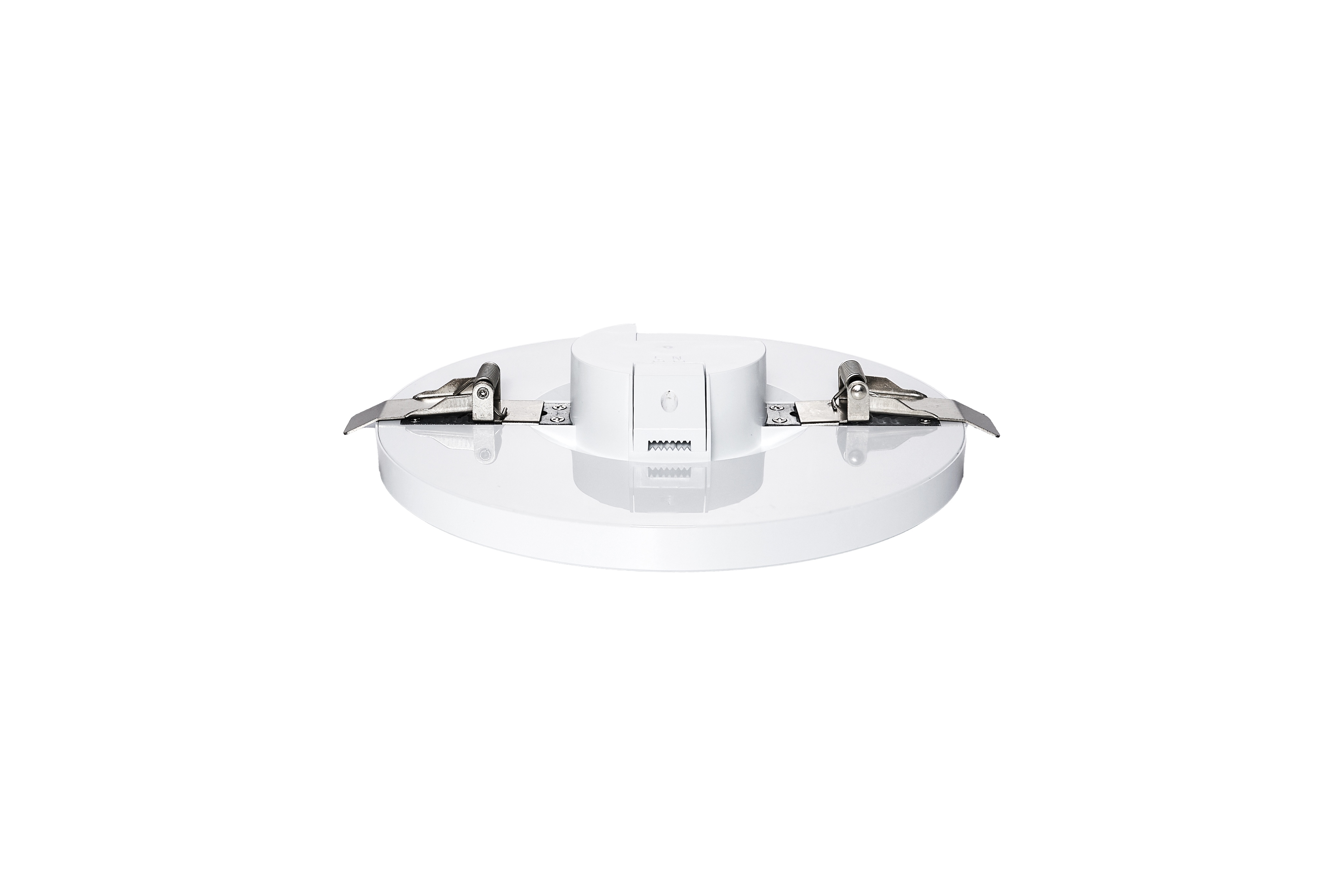

3. Screwless-clip design. The backside/base without any screws,simple and elegant.
4. PIR sensor,Distance 3-5m,Hold time and Daylight can be changed by Dip Switches.
5. IP20,IK08,110Lm/W.
6. Japan TEIJIN PC,UL94-V0 fire rated,UV resistant.
7. CCT Change,Power change.
8. UGR<22,Ra>85,SDCM<3.
9. 3 years warranty, CE/RoHS.
Inquiry
  • Detailed Description

General information

Part No.:     BL-LU15PW-C

Power:                        10W,15W Power change

Input Voltage:     AC230V

Power Factor:     >0.95

CCT:                   3000K/4000K CCT change

CRI:     Ra85

Lumen:          1100Lm,1500Lm

Beam angle:               120°

Dimmable:          NO

IP grade:          IP20

IK grade:                       IK08

Lifespan:                     50000Hrs

Working Temperature:         -40 - 50℃

Installing method:      Recessed Installation

Packing size:                 540*470*480mm/40PCS

Material:     PC+Metal

Weight:                         0.52KG/PC

Cutting-out sizes：            Ф140-Ф190mm
